How to Check Air Conditioner Motor Functionality

How to Check the Functionality of Your Air Conditioner Motors Yourself: A Step-by-Step Guide

The motors of the indoor and outdoor units of an air conditioner are key elements that ensure air circulation and efficient heat exchange. If you notice problems with the air conditioner's operation, such as weak airflow, unusual noises, or the fans not rotating, one of the motors may have failed. In this article, we will look at the basic ways to independently check the functionality of air conditioner motors, which will help you preliminarily diagnose the problem before contacting a specialist or ordering spare parts in Kyiv or any other city in Ukraine.

Basic Methods for Checking the Functionality of Air Conditioner Motors:

1. Visual inspection of the motor and its connections

The first step is to disconnect the air conditioner from the power supply and conduct a visual inspection of the motors of the indoor and outdoor units. Check for visible damage such as burnt wires, cracks in the housing, signs of corrosion, or foreign objects obstructing rotation. Also, make sure the wires are securely connected to the motor.

2. Manual rotation of the impeller

Try carefully rotating the fan impeller of each unit by hand. It should rotate smoothly, without jamming or excessive resistance. If the impeller rotates hard or is blocked altogether, this may indicate a mechanical failure of the motor or the entry of a foreign object.

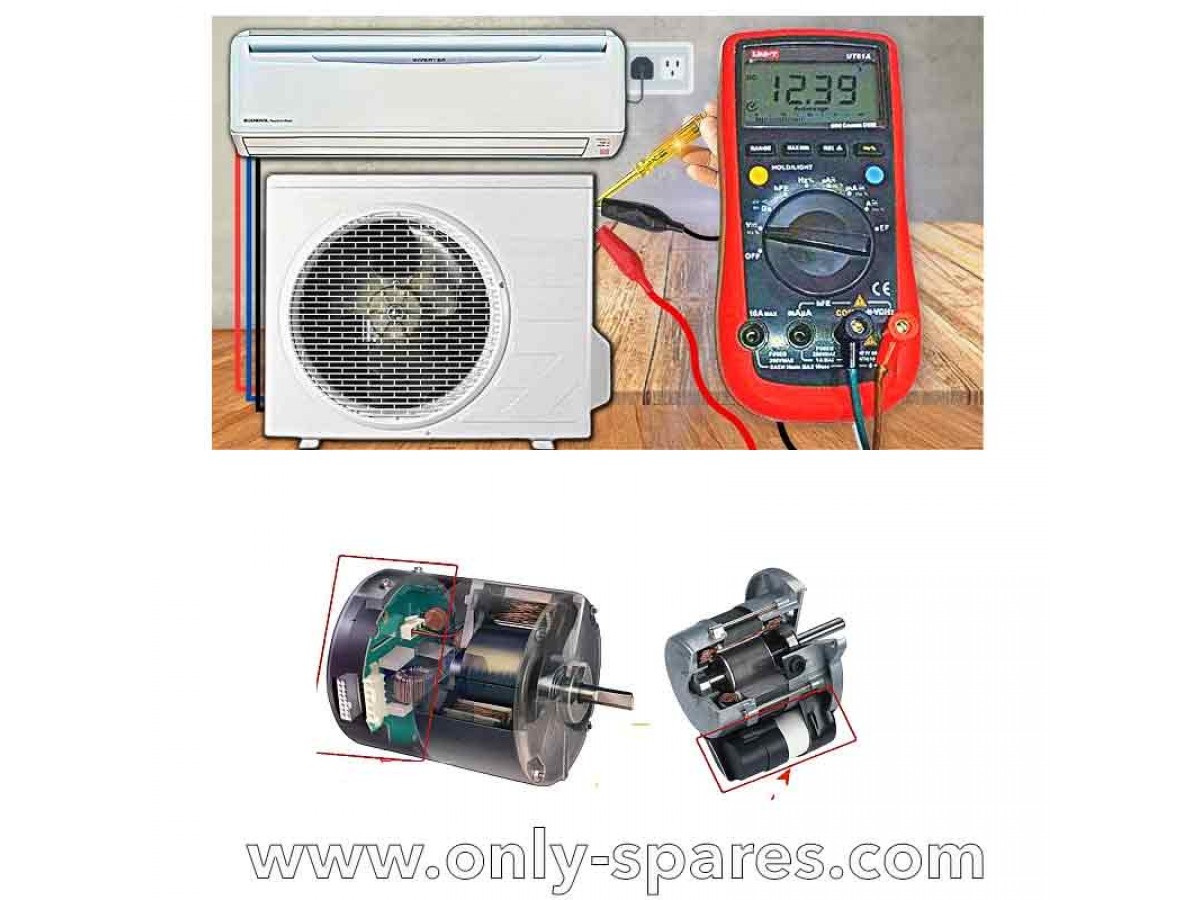

3. Checking the resistance of the motor windings with a multimeter (for experienced users)

For a more accurate diagnosis, you can use a multimeter to check the resistance of the motor windings. To do this, you need to find the motor terminals and measure the resistance between different pairs of contacts. The normal resistance value depends on the type and power of the motor. The absence of resistance (short circuit) or too high resistance (winding break) indicates a motor malfunction. **Caution!** This method requires knowledge of electrical engineering and caution when working with electrical appliances.

4. Checking for voltage at the motor terminals (for experienced users)

After turning on the air conditioner (carefully!), you can check for voltage at the motor terminals using a multimeter. The absence of voltage when there is a signal on the control board may indicate a problem with the wiring or the motor itself. **Caution!** Working with powered electrical equipment is dangerous and requires adherence to electrical safety rules.

5. Observing the motor's operation during start-up

Carefully listen to and watch the operation of the motors when the air conditioner starts. Unusual sounds (humming, creaking), delayed start-up, or attempts to start without rotation may indicate motor problems.

Signs of air conditioner motor failure:

• The indoor or outdoor unit fan does not rotate.
• Weak airflow from the indoor unit.
• Unusual noises (humming, creaking, knocking) during fan operation.
• Vibration of the indoor or outdoor unit.
• Overheating of the indoor or outdoor unit casing.
• Uneven fan speed.
• The air conditioner displays an error related to the fan or motor.

What to do after checking the motors?

1. If you find obvious mechanical damage or blockage, try to carefully eliminate the problem (for example, remove the foreign object).
2. If you are unsure of the test results or find signs of an electrical fault, contact a qualified technician for professional diagnostics.
3. If motor failure is confirmed, you can purchase a new indoor or outdoor unit motor in our online store Only-Spares in Kyiv with delivery throughout Ukraine. We offer a wide selection of motors for various air conditioner models at competitive prices.
4. Entrust the replacement of the motor to a professional to ensure proper installation and further reliable operation of the air conditioner.

Self-checking the functionality of air conditioner motors can help you save time and money on initial diagnostics. However, for an accurate determination of the cause of the breakdown and a quality repair, especially if you do not have the appropriate knowledge and experience, we recommend contacting professionals. And you will always find quality spare parts to restore the operation of your climate control equipment in our Only-Spares store!
