How to Check Air Conditioner Motor Functionality: A Step-by-Step Guide and Where to Order Quality Spare Parts

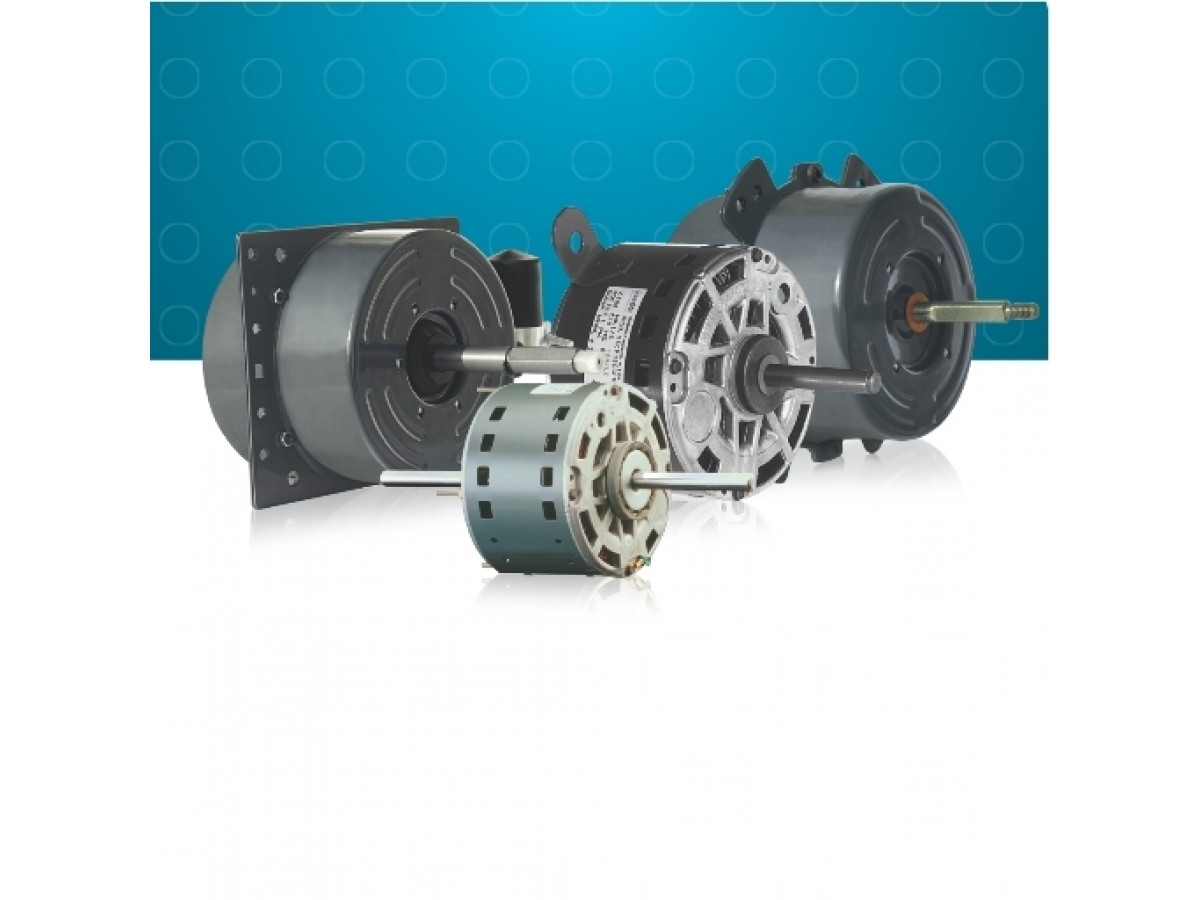

Fan motors are among the most crucial components in any split system, whether it's the indoor or outdoor unit. They ensure air circulation and efficient heat exchange, without which the air conditioner cannot function. If your air conditioner has stopped blowing air, is noisy, or won't turn on, it's very likely that the problem lies with the motor. In this detailed guide, we will show you how to independently diagnose the functionality of air conditioner motors and help you find the necessary spare parts for their repair or replacement.

Recognizing the Signs of a Fan Motor Malfunction

Before reaching for your tester, pay attention to the "symptoms" that may indicate problems with the fan motor:

**No airflow:** The indoor unit fan does not rotate, or the outdoor unit does not blow air properly.
**Unusual noises:** Humming, grinding, buzzing sounds coming from the motor that weren't there before.
**Burning smell:** May indicate overheating or a short circuit in the motor windings.
**AC running but cooling is weak:** The outdoor unit fan does not provide enough airflow to cool the condenser, reducing efficiency.
**Air conditioner shuts off spontaneously:** The system may turn off due to compressor overheating caused by insufficient heat dissipation by the outdoor unit fan.

If you notice one or more of these signs, it's time to proceed with diagnostics.

Tools you'll need for testing:

For most tests, you will need a basic set of tools:

**Multimeter (with resistance, voltage, and capacitance measurement modes):** This is your primary tool for electrical measurements.
**Screwdrivers (Phillips, flathead):** For accessing AC unit components.
**Pliers/wire cutters:** For working with wires.
**Electrical tape.**
**Flashlight (if needed):** For better visibility.

Important warning: Always disconnect the air conditioner from the power supply before starting any work! Your safety is paramount!

Detailed Algorithm for Checking Air Conditioner Motors

1. Visual Inspection and Mechanical Diagnostics

This is the first and simplest step, which can immediately reveal a problem:

**Power Disconnection:** Ensure the air conditioner is completely de-energized at the electrical panel.
**Access to Motors:** Carefully remove the protective covers of the indoor and/or outdoor unit to gain access to the fan motors.
**Fan Blade Inspection:** Check if the blades are clogged with dust, dirt, cobwebs, leaves (for the outdoor unit). Heavy contamination can create excessive resistance and overload the motor.
**Manually Rotate the Fan:** Gently try to spin the fan blades. They should rotate easily, without sticking, squeaking, or other unusual sounds. If movement is difficult or jammed, the problem might be with the motor bearings or a mechanical obstruction.
**Wiring and Connector Check:** Carefully inspect all electrical connections leading to the motor. Look for signs of burning, oxidation, damaged insulation, or disconnected wires.

2. Electrical Motor Check (using a multimeter)

This step allows you to assess the condition of the motor's electrical components.

Most household air conditioners use AC (alternating current) or DC (direct current) fan motors. The testing methods differ slightly.

Checking AC Motors (with a capacitor):

**Motor Winding Test (ohmmeter mode):**
- Disconnect all wires from the motor to exclude the influence of other components.
- AC fan motors usually have three wires: common (COM), run (RUN), and start (START).
- Measure the resistance between COM and RUN, COM and START, and also between RUN and START.
- The resistance values should correspond to the manufacturer's data or be within typical ranges (usually from tens to hundreds of Ohms).
- The sum of resistances (COM-RUN) + (COM-START) should approximately equal (RUN-START).
- If the resistance is zero (short circuit) or infinite (open circuit), the motor is faulty.
**Capacitor Test (capacitance measurement mode):**
- A capacitor (start or run) is connected to an AC motor. It often fails.
- ALWAYS discharge the capacitor before measuring by shorting its terminals through a resistor or a screwdriver with an insulated handle (a spark may occur!).
- Connect the multimeter probes to the capacitor terminals and measure its capacitance.
- Compare the obtained value with the nominal value indicated on the capacitor body (e.g., 1.5uF, 2.0uF, 3.0uF). An allowable deviation is usually no more than ±5-10%.
- If the capacitance is significantly lower, higher, or zero, the capacitor needs to be replaced.
**Checking for "Ground Fault":**
- Set the multimeter to resistance measurement mode (highest range).
- Connect one probe to the motor's metal casing, and the other, in turn, to each motor wire.
- The resistance should be infinite (or "OL" on the multimeter). Any other value indicates an insulation breakdown of the winding to the casing, which makes the motor dangerous and unusable.

Checking DC/Inverter Motors:

DC motors and inverter motors have a more complex control system (usually via a control board with a Hall sensor). A simple multimeter check may not be sufficient for a complete diagnosis, but basic parameters can be checked:

**Checking for power supply at the motor input:** If you have the appropriate knowledge, you can check the voltage supplied to the motor from the control board when the air conditioner is on (EXERCISE EXTREME CAUTION, HIGH VOLTAGE!). Lack of voltage may indicate a faulty control board.
**Visual inspection of the motor's circuit board:** Some DC motors have a small built-in control board. Inspect it for visible damage, burnt elements.

Accurate diagnosis of DC/inverter motors often requires an oscilloscope or specialized diagnostic equipment, making this process more complex for a home DIYer.

Found a Malfunction? Order Quality Spare Parts from Us!

After performing diagnostics, you should be able to determine what exactly failed – the fan motor itself, the start capacitor, or if the problem is deeper and related to the control board. At our online store, we understand how important it is to quickly and efficiently restore your air conditioner's functionality.

We offer a wide range of original and high-quality analog **spare parts for air conditioners** of various brands and models. Here you will find:

**Indoor unit fan motors:** To ensure quiet and efficient air circulation in the room.
**Outdoor unit fan motors:** Critically important for heat dissipation and cooling efficiency.
**Start and run capacitors:** Inexpensive but vital components for AC motors.
**Control boards (PCB CHIP):** If the problem turns out to be with the "brain" of your air conditioner.
Other **components for split system repair**: from sensors to compressors.

Thanks to our catalog, you can easily find the right part by your air conditioner model. We guarantee product quality and provide professional consultation to ensure your repair is successful and long-lasting. Don't let a motor malfunction hinder your comfort – order spare parts today and restore your air conditioner's full functionality!
