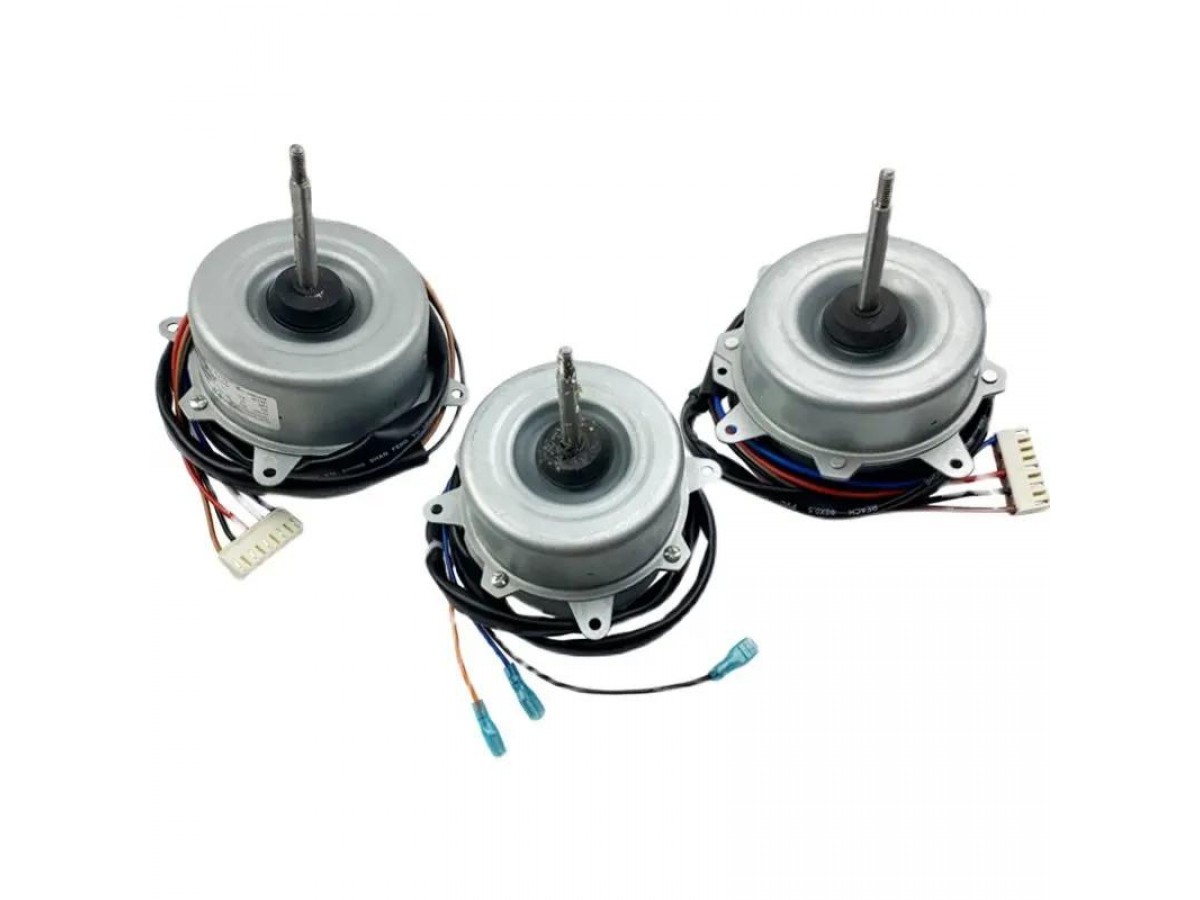

How to Properly Choose a New Motor for the Outdoor or Indoor Air Conditioner Unit: A Complete Guide and Where to Buy Quality Spare Parts

Fan motors in air conditioners play a key role in ensuring the efficient operation of the system, as they are responsible for air circulation and proper heat exchange. Over time, due to wear and tear, voltage fluctuations, or other factors, a motor may fail. Choosing a new motor is a responsible task, as not only the functionality but also the longevity of the entire split system depends on its compatibility and quality. In our online store, you will find a wide range of motors and other spare parts, and this guide will help you make the right choice.

When is a motor replacement needed? Signs and causes of malfunction.

Before choosing a new motor, it's worth making sure that it is indeed the cause of the problem. The main signs of a motor malfunction that require its replacement or repair include:

**Fan not rotating:** Complete absence of blade movement, even though the air conditioner is on.
**Unusual noises:** Humming, grinding, buzzing sounds coming from the motor, indicating bearing wear or mechanical damage.
**Reduced airflow:** The fan rotates slowly, leading to inefficient cooling/heating.
**Motor/unit overheating:** May be accompanied by a burning smell, tripping of protective circuit breakers.
**Vibration:** Excessive unit vibration caused by imbalance or motor malfunction.

Causes of failure can include: bearing wear, winding burnout due to voltage fluctuations or overheating, mechanical damage, manufacturing defects.

Key Parameters for Correct Air Conditioner Motor Selection

Choosing a new motor for an air conditioner requires attention to several important characteristics. Ignoring even one of them can lead to incompatibility and further problems. We recommend always looking for information on the old motor (data plate) or in your air conditioner's technical documentation.

1. Motor Type: AC or DC?

This is the most important parameter that determines the operating principle and wiring diagram:

**AC (Alternating Current) motors:** These are AC motors. They are simpler in design and are often used in budget "on/off" air conditioners. They often require a start or run capacitor for their operation.
**DC (Direct Current) motors / Inverter motors:** These are DC motors used in inverter air conditioners. They are controlled by a special electronic board (motor control board, often integrated or located nearby) and allow smooth speed regulation, which ensures high energy efficiency and precise temperature maintenance. They do not use capacitors for starting.

Important: An AC motor cannot be replaced with a DC motor and vice versa without a complete redesign of the control system, which is usually not economically feasible.

2. Location and Purpose: Indoor or Outdoor Unit Motor?

Although the function is similar, the design and power of the motors differ significantly:

**Indoor Unit Fan Motor:** Usually of lower power, designed for quiet operation and creating a uniform airflow in the room. It has appropriate mounting and dimensions for installation inside the indoor unit casing.
**Outdoor Unit Fan Motor:** More powerful, designed for intensive heat dissipation or supply in heating mode. It is designed to operate in conditions of significant temperature fluctuations and increased humidity. It has appropriate protection and mounting.

Do not confuse these motor types, they are not interchangeable.

3. Electrical Characteristics: Voltage, Power, Current, RPM

These parameters must match your air conditioner's requirements:

**Voltage (V):** Most often 220-240V for AC motors and 310V or other values for DC motors. Must match the system's nominal voltage.
**Power (W):** Determines the motor's performance. Must be identical or as close as possible to the original (e.g., 15W, 20W, 30W, 40W, 55W, etc.).
**Current (A):** Nominal current consumption.
**Revolutions per Minute (RPM):** Shaft rotation speed. Especially important for DC motors that can operate at various speeds. For AC motors, this may be a fixed value or several stages.

4. Physical Dimensions and Mounting: Shaft, Casing, Mounting Hole Location

Even if the electrical parameters match, the motor must physically fit your unit:

**Shaft diameter and length:** It is important that the fan impeller sits snugly on the new shaft. Shaft diameter can be 6mm, 8mm, 10mm, etc.
**Rotation direction:** Usually CW (clockwise) or CCW (counter-clockwise) when viewed from the shaft side. Incorrect direction will lead to inefficient operation or no airflow.
**Motor casing dimensions:** Width, length, height.
**Mounting hole and bracket location:** Must fully match for attachment to the unit casing.
**Connection type:** Number of wires and connector type. This is especially important for DC motors, where connectors may have different pin counts and shapes.

5. Additional Factors: Brand, Original or Analog, Built-in Sensors

**Air conditioner brand and model:** While motors are often universal, knowing the brand and model (e.g., Daikin, Gree, Midea, Samsung, LG, Ballu, Cooper&Hunter) will simplify finding a compatible spare part.
**Original motor or quality analog?:** Original spare parts guarantee full compatibility and identical characteristics. Quality analogs can be a more economical solution but require careful checking of all parameters. Our store offers only tested and reliable analogs that are not inferior to originals in quality.
**Built-in sensors:** Some motors (especially DC) have built-in Hall sensors or other elements for feedback with the control board. Make sure the new motor has all the necessary sensors and connectors.

Where to Buy a Quality Air Conditioner Motor?

Choosing and installing a new motor is an investment in the longevity and efficiency of your air conditioner. In our online store, we offer a wide range of **fan motors for indoor and outdoor units** from leading manufacturers and trusted suppliers.

We understand how important it is to find the exact part that will perfectly fit your model. Therefore, in our catalog, you can use a convenient search by parameters or air conditioner model. Our specialists are always ready to provide professional consultation, help with selection, and answer all your questions.

By purchasing motors and other **split system spare parts** from us, you get:

**Quality guarantee:** Only tested and reliable parts.
**Wide selection:** Motors for AC and DC systems, various powers and sizes.
**Competitive prices:** We strive to make repairs affordable.
**Fast delivery:** Prompt dispatch of orders across Ukraine.

Don't put off repairing your air conditioner! Ensure its stable and efficient operation by choosing the right motor from our spare parts store. With us, your air conditioner will work like new again!
